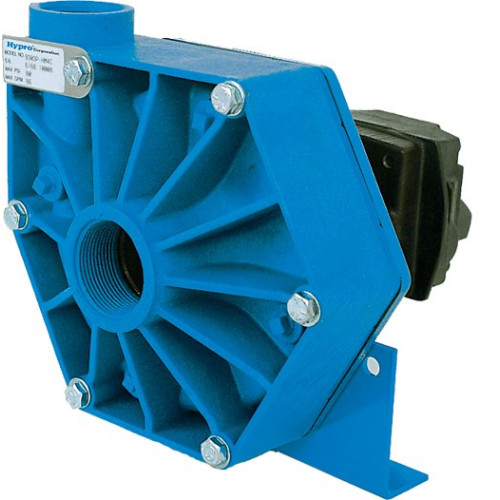

Hypro 9303P-HM1 Pump Hydraulically Driven Centrifugal Pumps 9300 Series

Chemical spraying and fluid transfer applications.

9 Bar max pressure

416 Lpm max flow

Non self-priming

Hydraulic motor driven

Polyproylene body, viton seals

150 Bar max oil pressure

49 Lpm max oil flow

1"1/2 female pump inlet

1"1/4 female pump outlet

1/2" & 3/4"NPTF motor ports

Carbon ceramic mechanical seal

Glass filled polypropylene impeller
