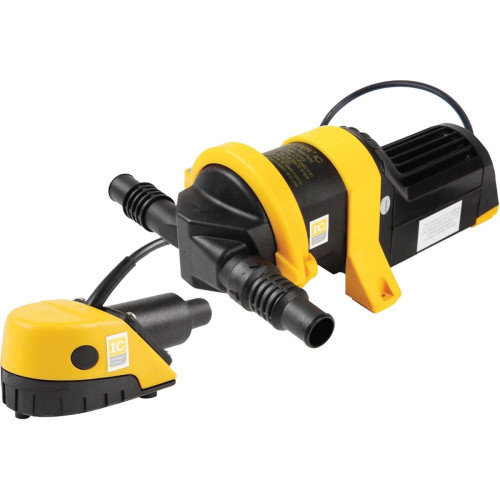

Whale Gulper IC Diaphragm Bilge Pump W-SI8224B 12V 19 Lpm 4m Cable

The Whale Gulper IC is a remote mounted electric bilge pump with intelligent control electronics built in. The Whale Gulper IC range reduces the need for four separate components and removes the hassle when installing and maintaining the unit.
At the heart of every Whale IC product lays innovative electronic control circuitry. This enables IC sensor accessories to communicate directly with IC pumps to control their performance and to switch on and off automatically.

Whale Gulper IC Features & Benefits
- Easy inspection and protected by mounting up to 4 metres away from the bilge area.
- An integrated non-choke valve means no filter to maintain and clean.
- Easy to install even on uneven surfaces.
- Secure fit with new wrap around mounting feature.
- Self-primes and runs dry.
- Port orientation: Horizontal (easily changed to vertical).
- Connectors: IP68, Waterproof quick connect 7 way (directly on to Gulper IC).

Whale Strainer and IC Sensor Features & Benefits
- Three products in one: Strainer, non-return valve and electronic control switch.
- Fits in confined bilge spaces.
- Fit and forget, requires no maintenance.

Flow Rate Description - 1140LPH (301 US GPH) / 19LPM (5 US GPM)
Fuse - 10A
Height Description - 120mm (4.7")
Length - 280mm, Cable: 4 Metres (12ft)
Material - Glass-Filled Nylon Pump Head, Santoprene Valves & Diaphragm
Type - Bilge Pumps
Voltage Description - 12V DC (12V - 13.6V)
Width - 198mm
Brand - Whale
Automatic Bilge Pumps - Yes
Country of Origin - United Kingdom
Maximum Pump Head - 2.3 to 4.27 Metres
Hose Size - 19mm / 3/4", 25mm / 1"
Maximum Combined Head and Lift - 4 Metres (12 Feet)
Maximum Recommended Head - 3 Metres (10 Feet)
Model - SI8224B
Self Primes up to - 3 Metres (9.8 Feet)
Wire Size - Minimum 1.5mm² (16 AWG)
Inlet Outlet - Fittings to Suit 19mm (3/4") & 25mm (1") ID Hose. Strainer Suits 19mm (3/4") ID Hose
Amps Description - Up to 8A (standby current draw: 0.01A)
