- 220 Bar rated pressure

- 40 Lpm max flow

- 90°C rated water temperature

- Trapped pressure valve

- Nickel plated brass construction

- Ceramic ball & Viton O rings

- AISI303 stainless steel internals

- Continuous use up to 90°

- Blue spring with regulator knob

- 45 Bar switch pressure

- 16 Amps max current

- 3/8"BSPF ports

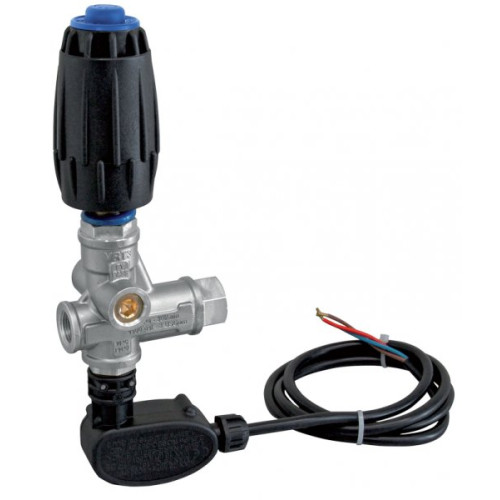

Mecline VRT3-P Pressure Regulating Unloader Valve. Nickel plated body and fittings. Safety lock at the maximum pressure. Regulation lock for Minimum and Maximum pressure in the knob version. New body with inner housing of O-Ring in the outlet for a higher resistance. Internal parts in stainless steel AISI 303. Ceramic ball. Dynamic O-Ring in FPM (Viton®), Recommended for use under “aggressive water” condition. The micro-switch safeguard is guaranteed by a mechanical stop. Seal diaphragm for total isolation of electrical switch by potential leaking of the valve.
