SURFACE PUMPS - CENTRIFUGAL ELECTRIC PUMPS - ONE IMPELLER 2"

The Sea Land Pump KP Series close-coupled centrifugal electric pumps with one impeller medium flow series KP have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.
Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 90 °C for other use, while the ambient temperature must not be higher than 40 °C.
Flow rate up to ~ 36 m3/h.
Heads up to~30m.

TECHNICAL FEATURES
Pump body: cast iron G20 with anti-corrosive coating.
Motor bracket: cast iron G20 with anti-corrosive coating.
Impeller: stamped brass UNI-EN 12165 (Techno-polymer for KP 80-100-120).
Pump shaft: stainless steel Aisi 304 (Aisi 420 F for KP 80-100-120).
Mechanical seal: carbon-ceramics.

MOTOR
The control motors are asynchronous, squirrel cage-type, closed, with external ventilation.
Incorporated motor protection and capacitor always on, for single-phase models.
The motor protection for three-phase models must be installed by the customer.
Equipment compliant with current standards should be used.
Class of insulation: F-service:S1-Degree of protection: IP 44.
Terminal board protection: IP 54.

PUMP MODEL

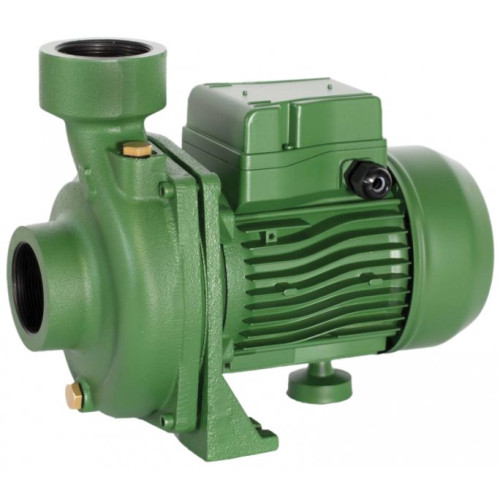

Sea Land KP200M Pump 180200000 Centrifugal Pump 240 Volts
NON Self-Primimg Cast Iron
Flow-600 lpm
Max Head- 24m
Volts- 240
Hp- 2.0
Inlet- 2" Female
Outlet-2" Female
Nitrile Seals & O Rings
Stamped Brass Impeller
Stainless Steel motor shaft
Carbon & Ceramic Seal
For use with clear water up to a max temp of 90c
Motor protection IPX4
