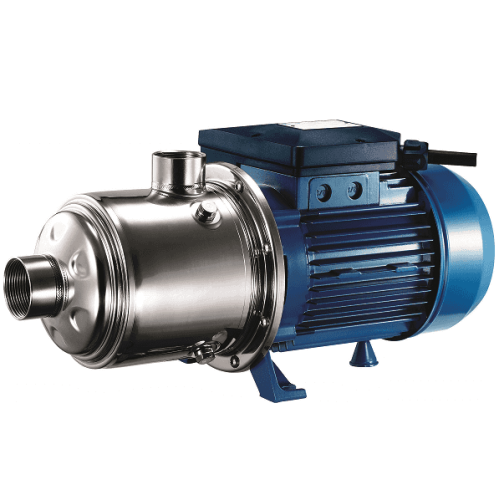

Pentax Ultra 9S-100/2 WRAS Approved Multistage Pump 230v
Pentax Ultra 9S WRAS Approved Surface Multistage Pumps. Stainless steel multistage pumps for the pumping of clean water WRAS approved. Used for boosting water, boosting sets, irrigation, water treatment, heating and air conditioning. Non self priming.

CONSTRUCTION FEATURES
Impeller - Noryl®
Mechanical seal - ceramic-graphite ≤ 6 impeller, graphite-silicon carbide ≥ 7 impeller
Motor shaft - Stainless steel AISI 304
Liquid temperature -  -15 ÷ +110 °C
Operating pressure - Max. 8.5 bar

MOTOR
2 pole induction motor - 1~ 230V-50Hz with thermal protection up to 1,85 kW
Insulation class -F
Protection - IP44

PUMP DATA
Voltage 230v
Inlet 1 1/2"
Outlet 11/4"
240 Lpm
23 Hm
Kw 0.75
4.5 AMP
H203 X W176 X L375mm
Kg 10.8
