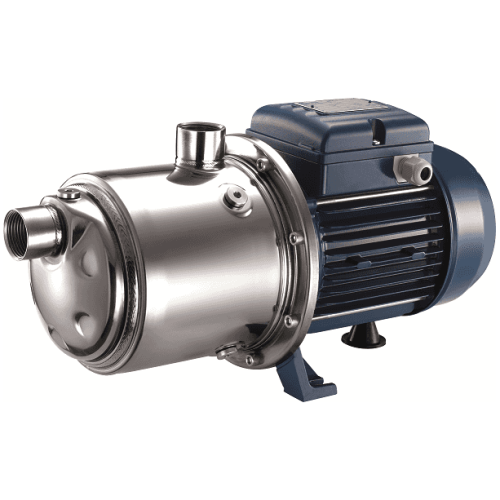

Pentax Ultra 5S-80/3T WRAS Approved Multistage Pump 400v

Pentax Ultra 5S WRAS Approved Surface Multistage Pumps. Stainless steel multistage pumps for the pumping of clean water WRAS approved. Used for boosting water, boosting sets, irrigation, water treatment, heating and air conditioning. Non self priming.

CONSTRUCTION FEATURES
Impeller - Noryl®
Mechanical seal - ceramic-graphite ≤ 6 impeller, graphite-silicon carbide ≥ 7 impeller
Motor shaft - Stainless steel AISI 304
Liquid temperature -  -15 ÷ +110 °C
Operating pressure - Max. 8.5 bar

MOTOR
2 pole induction motor - 1~ 230V-50Hz with thermal protection up to 1,85 kW
Insulation class -F
Protection - IP44

PUMP DATA
Voltage 400v
Inlet 1"
Outlet 1"
140 Lpm
34 Hm
Kw 0.6
1.4 AMP
H203 X W178 X L357mm
Kg 10.3
