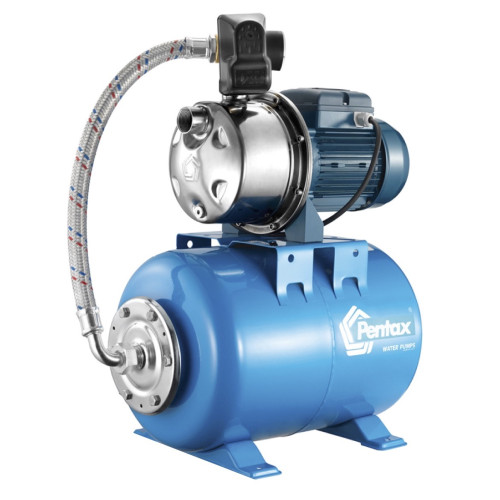

Pentax Superdomus INOX 100 Self Priming Stainless Steel  Jet Pump 230V 24 L Booster Set

DESCRIPTION
Automatic working pressure system built with a self-priming stainless steel Pentax INOX 100 jet electropump. The set is ready for installation, made with a electropump, a pre-rated and adjustable pressure switch, pressure gauge, connector, (and eventually a flexible hose with stainless steel sheath), membrane tank and power cable. The set specification and performance are related to the adapted electopump, tank capacity and pressure switch rating.

APPLICATIONS
For water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks for transferring liquids and emptying tanks, used in medium sized industrial applications and gardening.

PUMP CONSTRUCTION FEATURES
Pump body - Stainless steel
Motor bracket - Aluminium
Impeller - Noryl®
Mechanical seal - Ceramic graphite
Motor shaft - Stainless steel AISI 416
Liquid temperature -  0 - 50 °C
Operating pressure - Max. 8 bar

MOTOR
2 pole induction motor - 1~230v-50Hz
Insulation class -F
Protection - IP44

PUMP DATA
Flow - 50 Lpm
Head - 50 m
Amps - 4.6
kW P1 - 0.98
kW P2 - 0.74
Dimensions -  H199 x W175 x L360 mm
Weight - 9.9kg

TANK DATA
Tank volume - 24 Litre
Material - Mild steel
Colour - Blue (Subject to change)
