SURFACE PUMPS - VERTICAL MULTISTAGE

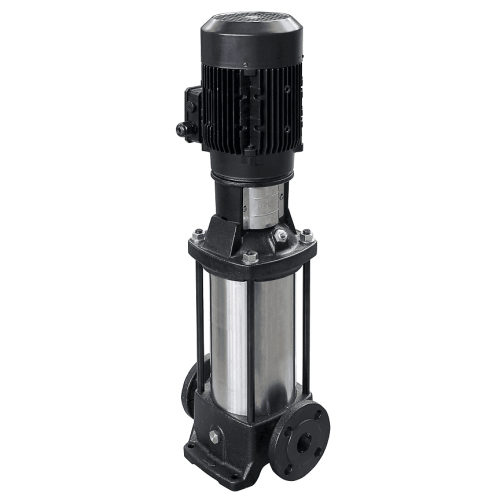

Pentair PVM Vertical Multistage Centrifugal Pumps. High hydraulic efficiency, Motor designed to EN standards.
The PVM series are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled.
All pumps are equipped with high efficiency motors (IE3) and with a cartridge type mechanical seal for easy maintenance.

PVM pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.

APPLICATIONS
Water supply
Pressurization systems
Water treatment/filtration
Irrigation
High Pressure washing
Liquid transfer
Fire protection systems
Boiler feed

MECHANICAL DATA
Mechanical seal - SiC/SiC
Temperature of the liquid max. - 120 degrees C
Gasket - EPDM
Shaft - Stainless steel 1.4057; AISI 431
Impeller - Stainless steel 1.4301; AISI 304
Pump housing - Cast iron EN GJL 200

ELECTRICAL DATA
Type of enclosure - IP 55
Insulation class - F
Ambient temperature max. - 50 degrees C
Rotation speed - 2900 rpm

PUMP MODEL
PVM 45-4 FT (VLR 46-40)
400/690v 50 Hz 15kW
1000 Lpm
98Hm
DN80
182 kg
