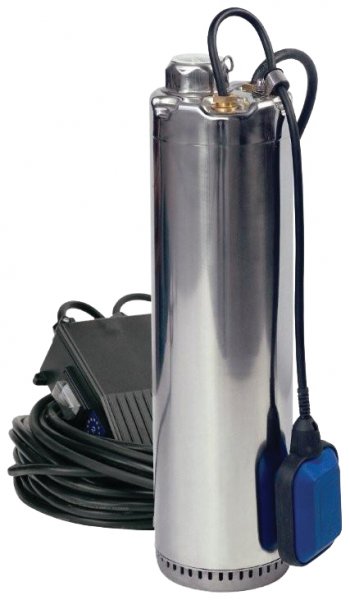

Arven GPV.RX Submersible Monobloc Multi-Stage Submersible Pumps

APPLICATIONS
Civil and industrial waters handling plants. Pressurisation plants. Water supply from rain water tanks or reservoirs, wells, Roman wells, basins and watercourses. Sprinkler systems.

PUMP
Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication. Double mechanical seals: engine face: oil bath, pump face: water bath. 20m permissible draught of water. IP 68 class protection. Class "F" insulation. Maximum temperature of pumped liquid 35 degrees C. Single phase: 220-230v/50HZ with built in thermal protection and permanent capacitor. Cable features: Single phase: 20 metres HO7RN-F for the standard version (automatic-manual). Three phase: 20 metres HO7RN-F.
