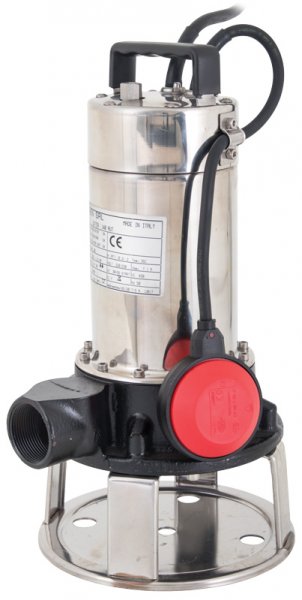

Arven Cutter Submersible Electric Grinder Pumps for Foul and Heavy Waste Water

APPLICATIONS
Pumping and grinding of sewage even with solid bodies and fibrous parts in suspension.. Decantation pit, sewage pit and slurry collection pit pump out. Domestic and industrial lavatory/black water handling systems.

PUMP
Double chamber electric pump (motor, mechanical seal). Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication. Sealing ring – engine face. Double mechanical seals: engine face: oil bath (excluded cutter 140). Pump face: water bath. Permissible draught of water: 5 mt. IP 68 protection class. Class “F” insulation. Max pumped liquid temperature: 25°C with partially submerged pump 35°C with totally submerged pump. Versions single Phase: 220-277V/50Hz or 220-277V/60Hz with built in thermal protection and plastic casing power supply box comprising capacitors. Three Phase: 220-277V/50Hz or 380-480V/50Hz and 220-277V/60Hz or 380-480V/60Hz with overload protection care of the User. Motor power: from 1,5 Hp to 2 Hp single phase and three phase version 3 Hp only three phase Version. Automatic single phase version up to 1,5 Hp. Standard cable features. Single phase: 10 meters H07RN-F complete with power supply box 0,7 m cable section, without connection plug Three phase: 10 meters H07RN-F. Customised voltage and frequency rating available on demand Optional: Down stroke guide rail systems DN50 for fixed plants.
