PUMPS ARE NOTHING WITHOUT CONTROL

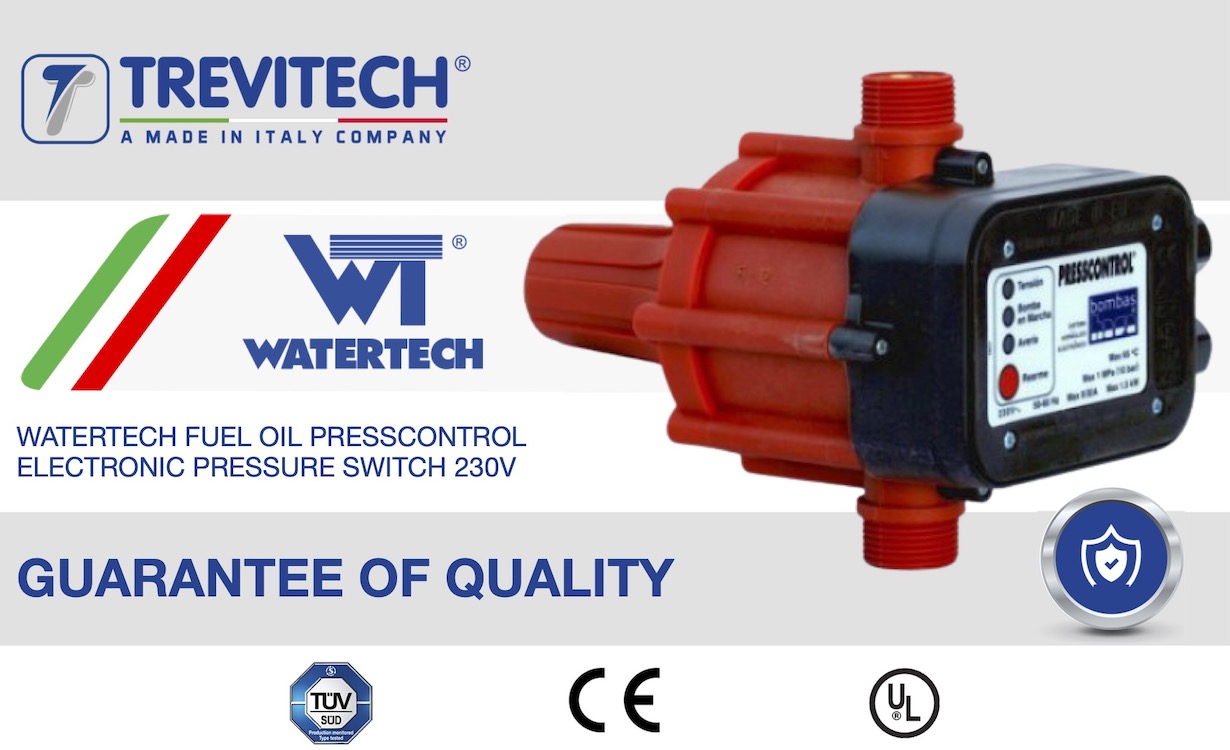

FUEL OIL PRESSCONTROL 230V

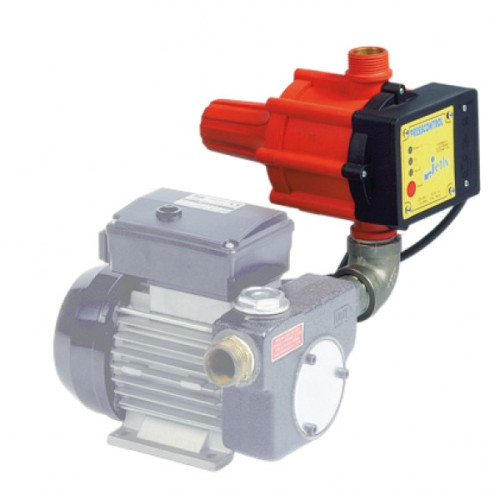

The Fuel Oil Presscontrol is a electronic pressure switch and protection device. Can be fitted to almost any pump with outlet pressure of two bar minimum to ten bar maximum with a flow rate of between 40-200 litres per min. The Presscontrol will turn off in the case of no liquid to protect the pump from dry running.

MODEL
230v
1.5Kw Maximum
8 Amp Maximum
1" Male BSP Inlet / Outlet
1.4Kg
Automatically turns on and off a pump
H 165mm x W 170mm x L 230mm
