- 480-1500 Bar pressure

- 20-100 Lpm flow

- 30°C max water temperature

- Factory set & sealed to order

- PED certified to 97/23/CE cat. II

- Brass body - St.steel internals

- 1/2"BSPM inlet

- 25mm hose barb bypass

- Call sales office for installation advice

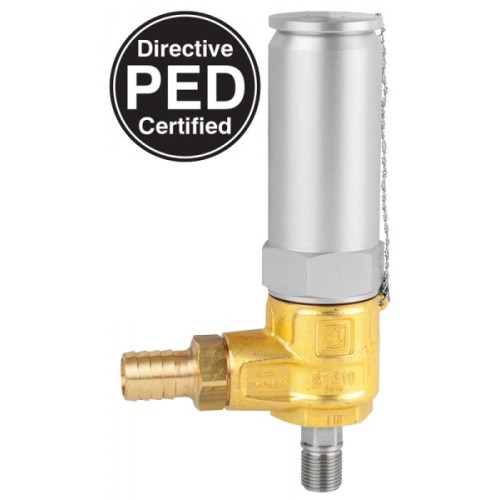

The Pratissoli S1510 safety valve is a manually- adjustable, pressure-operated device which, according to its setting, releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system. The valve has been designed to protect positive- displacement pumps or components (such as containers and pipes) of high pressure water hydraulic systems up to category II.
