- 200 Bar max pressure

- 110 Lpm flow

- 85°C max water temperature

- Brass body - Stainless steel internals

- 3/4"BSPF inlet

- 3/4"BSPF bypass

- Call sales office for installation advice

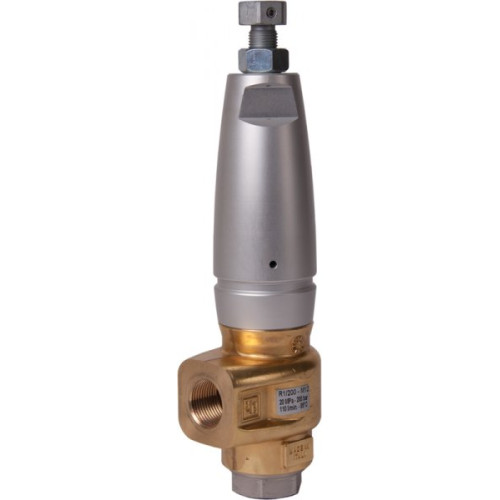

The Pratissoli R1/200 pressure regulator is a manually- adjustable, pressure-operated device which, according to its setting, limits the pump/system pressure by conveying the excess of water to the by-pass.

Moreover, when the outlet flow is blocked, this device totally releases the flow, thus keeping the pump/system at the adjusted pressure.
