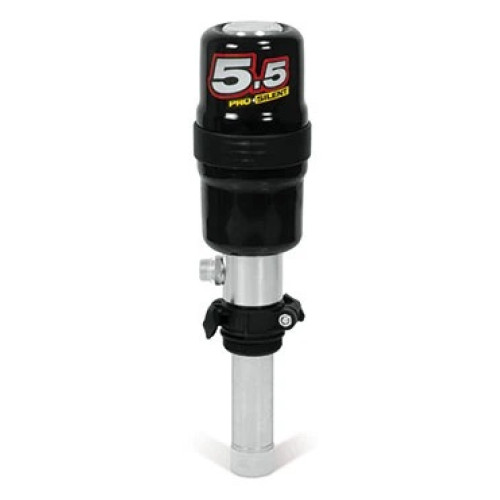

Piusi 5:1 Air Operated Oil Pump 15.5ltrs Per Min (5:1 ratio) 175mm (Stub)

New from Piusi is the “Pro + Silent” air operated oil pump range; part of their growing offering to the oil and lubrication market. The design of these air oil pumps has been specially considered to ensure high performance and durability in garage and workshop environments. These 5:1 air powered oil transfer pumps are designed for pumping medium viscosity oils over short to medium distances. They are available in stub and long length versions for mounting to a wall or drum respectively, and a range of optional accessories are available to go alongside the Piusi pump range.

Features of the Piusi 5:1 Air Operated Oil Pump:
5:1 ratio air operated oil transfer pumps
Low operating noise of 77dB
Pneumatic exchanger & three-stage air discharge system
Enhanced efficiency & reduced air consumption
Polyurethane internal seals
Supplied with 2” BSP bung adaptor
Max Flow (lpm) – 15.5
Viscosity up to 800cSt
Ratio – 5.5:1
Suction Pipe – 175mm
Air Pressure (bar) – 3-8
Air Consumption (lpm) – 200-250
Air Inlet – ¼” F BSP
Outlet – ½” M BSP
