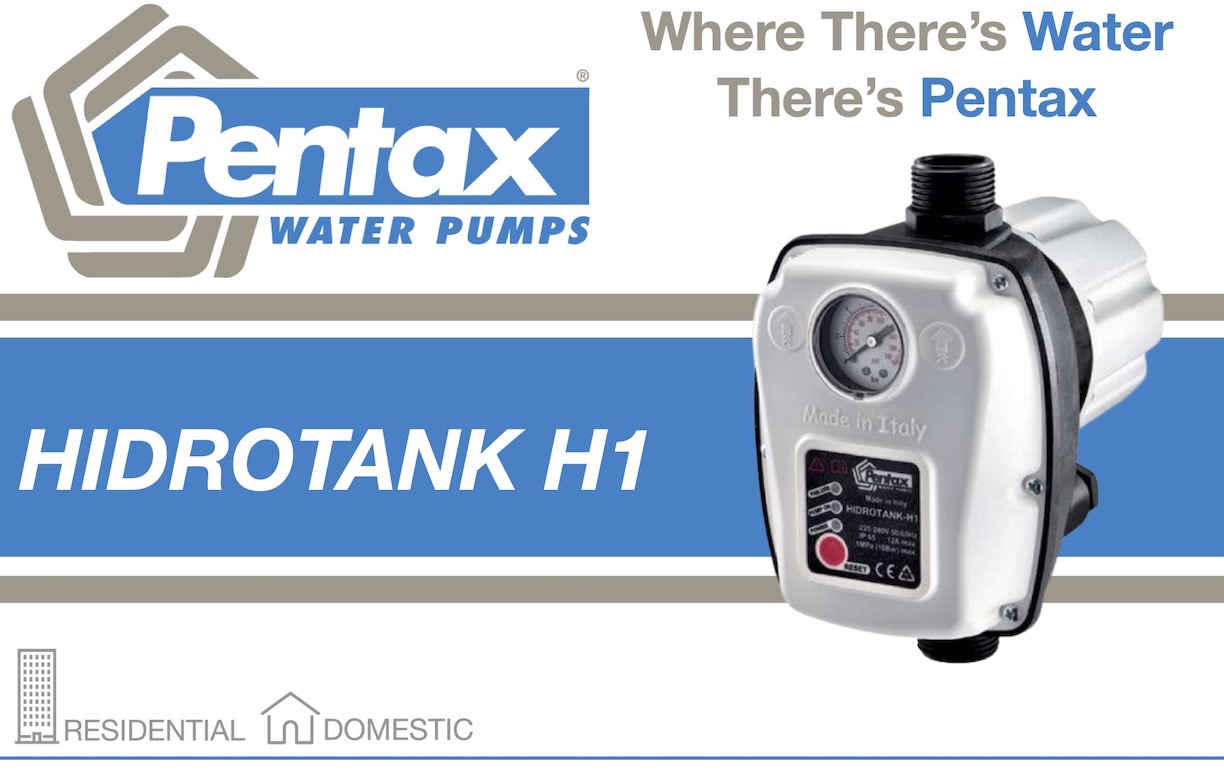

Pentax Pumps Hidrotank H1 Electronic Flow Control

1. Automatic start and stop operations of single-phases electric pumps up to 2 Hp
2. Replacement of the traditional water system set consisting on pressure switch and pressure tank
3. Control the starting of the electric pump after a pressure decre- ase (taps opening) and stopping when the fluid flow interrupt at the maximum pressure level of the electric pumps (taps closing)
4. Protection against dry running
5. Starting pressure adjustable during the installation
6. Standard 1”M hydraulic connections
7. Installation in any position-both vertical and horizontal - according to the flow direction.
8. Easily replaceable electronic printed circuit board
9. No need of maintenance
10. Thanks to the 0,4 lt. tank it protects from the frequen start-stop required by small request of water and from any losses into the system
11. Protection of the electronic board thanks to the new watertight compartment
12. Protection from water-hammer
13. New design and new concept
14. Built in 0,4 lt. tank
15. Built in pressure gauge
16. Watertight electronic part

TECHNICAL DATA
Power supply - 230V ac ± 10% 50/60Hz
Max rated current - 12 A
Starting pressure range - 1 - 3,5 bar
Max pressure - 10 bar
Protection degree - IP65
Max fluid temperature - 55 °C
Max ambient temperature - 55 °C
