Pentair Sherwood Major Repair Kit 25122 for P1700 Series Sherwood Engine Cooling Pumps
Sherwood major repair kit 25122 contains all the necessary items to overhaul Sherwood pump models P1716, P1722, P1727 and P1730, including Sherwood: P1716B-01, P1716B-02, P1716-04, P1716A, P1716C, P1716X, P1722B-01, P1722B-02, P1722-04, P1722A, P1722C, P1722X, P1727FB-01, P1727FB-02, P1727-04, P1727A, P1727C, P1727X, P1730-02, P1730-04, P1730F-01, P1730F-02, P1730F-04, P1730A, P1730C, P1730X, P1731F-01, P1731F-02 and P1731F-04. It also contains a the latest silicon carbide mechanical seal and upgraded shaft, to bring your Sherwood pump up to the C pump specification (latest spec).

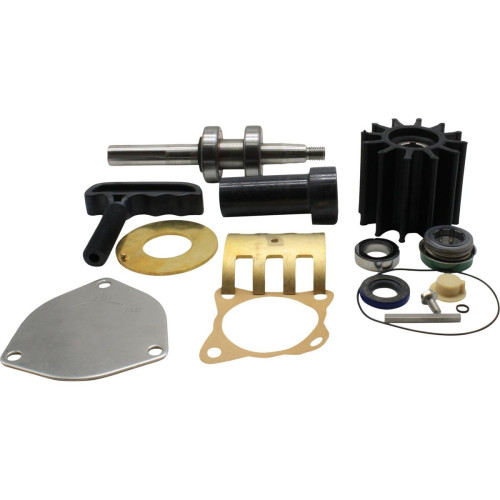

The Sherwood 25122 major repair kit contents include:
- 25120 Shaft and Bearings Assembly
- 25115 Mechanical Shaft Seal, silicon carbide and fitting tool
- 17000K Neoprene Impeller
- 19667 Key
- 18271 Cam Plate
- 24162 Wear Plate
- 18742 End Cover Plate
- 19674 Shaft Seal
- 15952 Circlip
- 21570 Gasket
- 15945 O Ring
Pentair Sherwood Major Repair Kit 25122 for P1700 Series Sherwood Engine Cooling Pumps
- Brand: Pentair Sherwood
- Product Code: SW25122
-
£698.08
