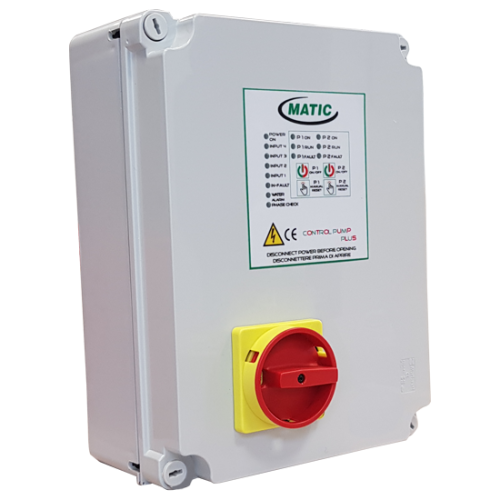

Multi Function & Multi Feeder Control Panel For 1 & 2 Pumps ALL IN ONE CODE
Booster Function 1 & 2 Pumps With Changeover Function and 2nd Pump Automatic Starting For Helping The First
Drainage Function 1 & 2 Pumps With Changeover Function and 2nd Pump Automatic Starting For Helping The First + Too High Level Alarm
Filling Function 1 & 2 Pumps With Changeover Function

DESCRIPTION
Complete With Fuses on The Power Line, Adjustable Amperometric Motor Protections, Inner Buzzer, Output For a Remote Alarm, Anti Rotor Blocking Function, Phases Check Control.

FEATURES
Product: Multi Function Control Panel
Power Supply: 240V e 400V ALL IN ONE
Max Motor Load : 2 x 1,5 Kw Single Phase  230V c.a.  – 2 x 5,5 Kw Three Phase  400 V c.a. ALL IN ONE

I
