SURFACE SEMI-TRASH WATER PUMP WITH CRASH FRAME

Koshin STV-80X Semi-Trash Water Pump Powered by a Koshin K180 Petrol Engine. Water pump that is ideal for water applications with dirt particles up to 8mm

CHARACTERISTICS
Guaranteed suction height of 8 meters
Silicon carbide mechanical seal. 4-5 times more resistant than standard carbon-ceramic mechanical seal.
Nodular cast iron (FCD) for impeller and volute casing provides 10 times more erosion resistance than regular cast iron.

PUMP DATA
Connection Diameter - 80mm (3")
Connection thread - Outer pipe thread BSP or NPT
Total head - 26m
Max. suction lift - 8m
Delivery volume - 900 Lpm
Material for mechanical seal - Sic (Silicon Carbide) x Sic
Volute material - Spheroidal graphite iron castings (FCD450)

ENGINE DATA
Type - Forced air-cooled 4-stroke gasoline

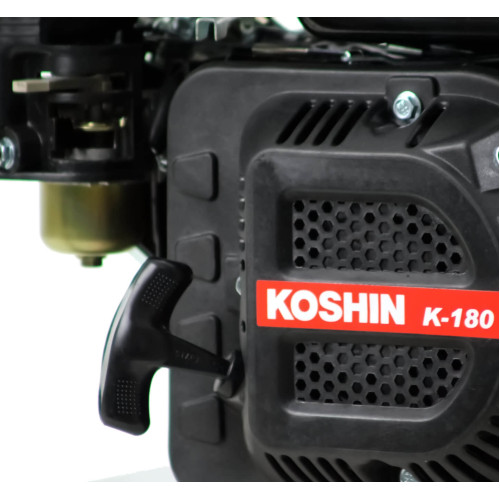

Model - Koshin K180
Displacement - 179 ccm
Rated output - 3.1 kW (4.2 PS) / 3600 rpm
Max. output - 3.5kW (4.8PS) / 3600 rpm
Fuel - Automotive unleaded gasoline
Fuel tank capacity - 3.6 L
Continuous operating time - Approx 2 hrs
Starting method - Recoil starter

STANDARD ACCESSORIES
1 Strainer
2 Hose couplings
3 Hose bands
1 Engine tool set

SIZE AND WEIGHT
Net weight - 30.9 kg
Gross weight - 32.9 kg
Dimensions L X W X H (cm) - 59.3 x 42.5 x 52.8
