SURFACE HIGH PRESSURE PUMP WITH CRASH FRAME

Koshin SERH-50B High Pressure Water Pump Powered by a Honda GX160 Petrol Engine. The high delivery pressure makes this  motor pump ideal for sprinkler systems, plantation irrigation and fire fighting.

APPLICATIONS
Fire fighting
Pumping large quantities of water over long distances
Paddy fields irrigation
Water irrigation with sprinkle systems
Gardening / orchard cultivation
Pumping water from wells
Filling water reservoirs
Filling or draining water from ponds
Filling or draining water from fish farms
Washing of livestock, barns or agricultural equipment
Pumping water with solid particles up to 3m

PUMP DATA
Connection Diameter - 50mm (2")
Connection thread - Inner pipe thread BSP or NPT

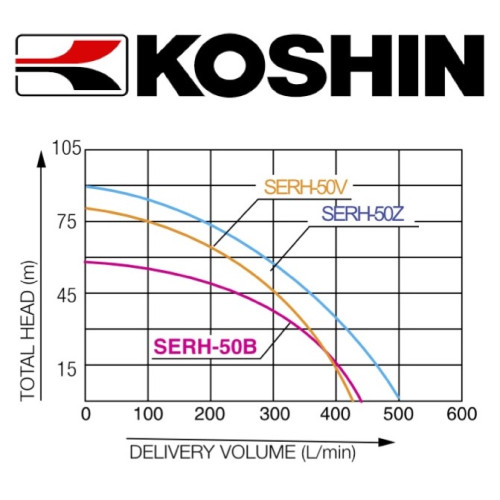

Total head - 57m
Max. suction lift - 8m
Delivery volume - 440 Lpm

ENGINE DATA
Type - Forced air-cooled 4-stroke gasoline
Model - Honda GX160
Displacement - 163 ccm
Rated output - 2.9 kW (3.9 PS) / 3600 rpm
Max. output - 3.6 kW (4.9 PS) / 3600 rpm
Fuel - Automotive unleaded gasoline
Fuel tank capacity - 3.1 L
Continuous operating time - Approx 2 hrs
Starting method - Recoil starter

STANDARD ACCESSORIES
1 Strainer
2 Hose couplings
3 Hose bands
1 Engine tool set

SIZE AND WEIGHT
Net weight - 31 kg
Gross weight - 34 kg
Dimensions L X W X H (cm) - 53.5 x 40.5 x 44
