SURFACE CLEAR WATER PUMP WITH CRASH FRAME

Koshin SEH-100X Clear Water Pump Powered by a Honda GX240 Petrol Engine. Suitable for pumping larger volumes of water.

APPLICATIONS
Paddy fields
Water irrigation with sprinkle systems
Gardening / orchard cultivation
Pumping water from wells
Filling water reservoirs
Filling or draining water from ponds
Filling or draining water from fish farms
Washing of livestock, barns or agricultural equipment
Pumping water with solid particles up to 3m

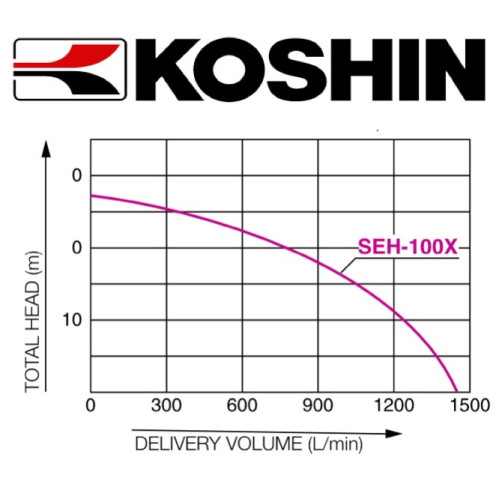

PUMP DATA
Connection Diameter - 100mm (4")
Connection thread - Inner pipe thread BSP or NPT
Total head - 28m
Max. suction lift - 8m
Delivery volume - 1450 Lpm
Impeller- FC200
Volute casing - FC200

ENGINE DATA
Type - Forced air-cooled 4-stroke gasoline
Model - Honda GX240
Displacement - 270 cc
Rated output - 4.6 kW (6.3 PS) / 3600 rpm
Max. output - 5.9 kW (8.0 PS) / 3600 rpm
Fuel - Automotive unleaded gasoline
Fuel tank capacity - 5.3 L
Continuous operating time - Approx 2.5 hrs
Starting method - Recoil starter

STANDARD ACCESSORIES
1 Strainer
2 Hose couplings
3 Hose bands
1 Engine tool set

SIZE AND WEIGHT
Net weight - 54 kg
Gross weight - 59 kg
Dimensions L X W X H (mm) - 680 x 490 x 675
