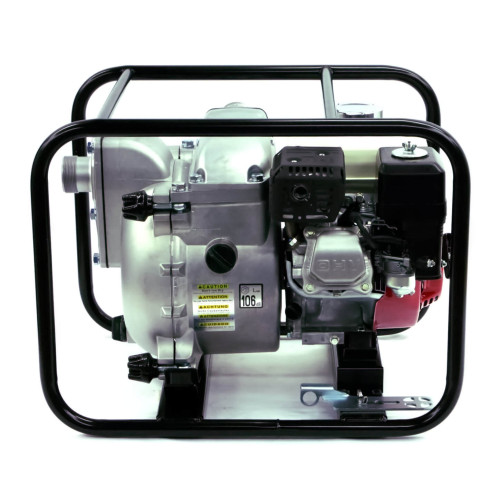

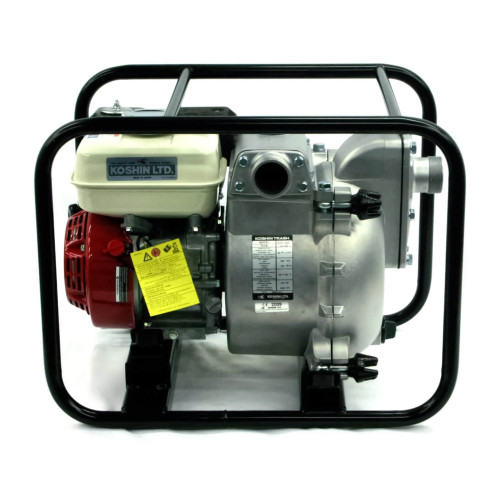

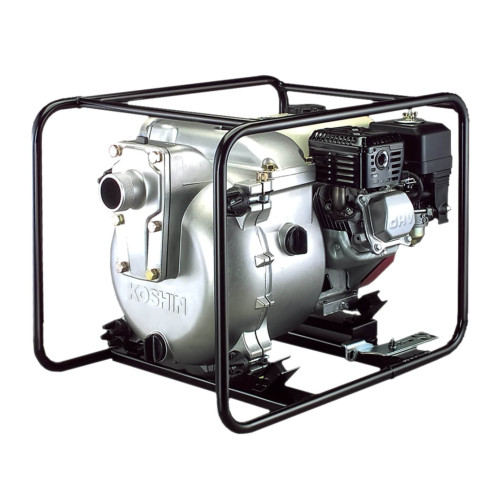

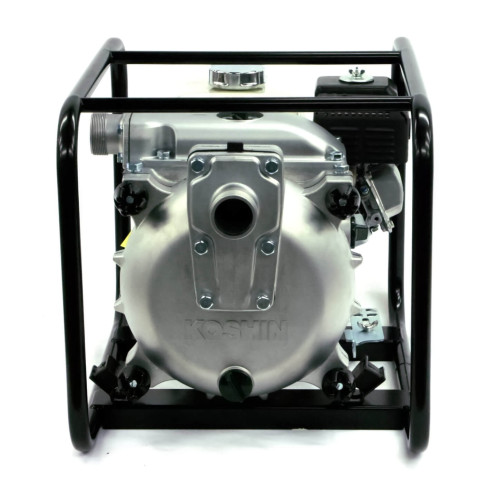

SURFACE TRASH WATER PUMP WITH CRASH FRAME

Koshin KTH-50X Trash Water Pump Powered by a Honda GX160 Petrol Engine. Powerful pump, specially designed for heavy duty tasks! Special construction and wear-resistant materials ensures high capacity and suction power.

APPLICATIONS
Suitable for sandy and muddy water with particles up to 20mm.
Washing of livestock, barns or agricultural equipment.
Water irrigation with sprinkle systems.
Pumping water from wells

PUMP DATA
Connection Diameter - 50mm (2")
Connection thread - Inner pipe thread BSP or NPT

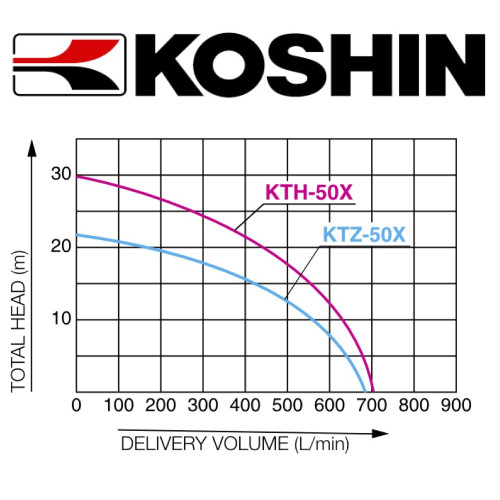

Total head - 30m
Max. suction lift - 8m
Delivery volume -700 Lpm
Material for mechanical seal - Sic (Silicon Carbide) x Sic
Volute material - Spheroidal graphite iron castings (FCD450)
Impeller material - Hi chrome

ENGINE DATA
Type - Forced air-cooled 4-stroke gasoline
Model - Honda GX160
Displacement - 163 ccm
Rated output - 2.9 kW (3.9 PS) / 3600 rpm
Max. output - 3.6 kW (4.9 PS) / 3600 rpm
Fuel - Automotive unleaded gasoline
Fuel tank capacity - 3.1 L
Continuous operating time - Approx 2.2 hrs
Starting method - Recoil starter

STANDARD ACCESSORIES
1 Strainer
2 Hose couplings
3 Hose bands
1 Engine tool set

SIZE AND WEIGHT
Net weight - 47 kg
Gross weight - 50 kg
Dimensions L X W X H (cm) - 64.6 x 48.8 x 50.9
