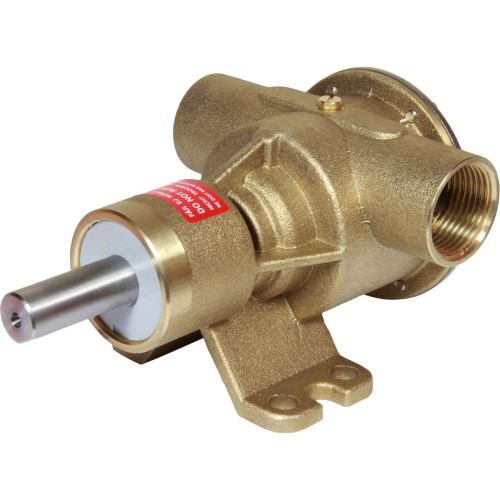

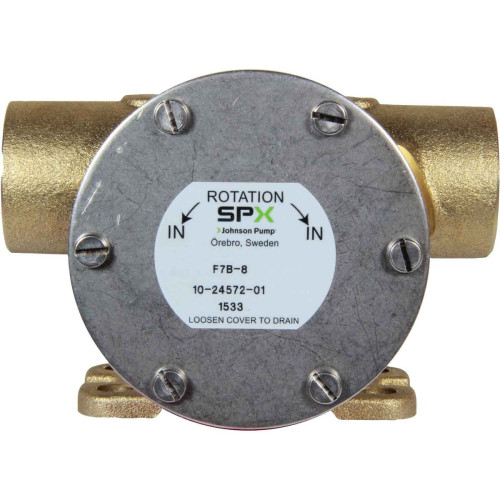

Johnson F7B-8 Foot Mounted Engine Cooling Pump 1" BSP 17mm Shaft

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:
- Volvo Penta MD2030 & MD2040
- CMD ATM100
- Isuzu 4BG1 & 6BG1 Gen-set
This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps.

Flow Rate Description - 107 LPM at 2000 RPM
Height Description - 93mm (3.7")
Length - 170mm (6.69")
Material - Bronze Body, Stainless Steel Shaft
Series - F7B-8
Type - Engine Cooling Pumps
Width -120mm (4.72")
Brand - Johnson
Suitable For - Isuzu|Volvo
Diameter Description - Shaft: 17mm (5/8")
Drive Type Description - Pulley Driven
Impeller Fitted - 09-1028B
Model - 10-24572-01
Mounting Description - Pedestal Mount
Replaces - Johnson F7B-8 (10-24070-1, 10-24572-13) & F4B-9 (10-24465-01), Volvo Penta 3580945
Inlet Outlet - 1" BSP Female
