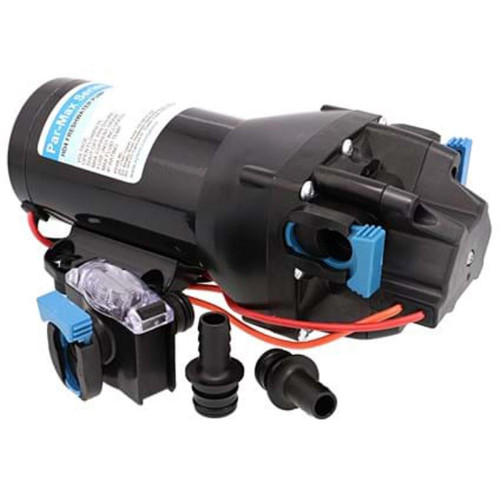

Jabsco Q401J-112S-3A Par Max HD4 Pressure Pump 12V 15 LPM 25 PSI

Jabsco water pressure pump Q401J-112S-3A is an efficient, self-priming Par Max HD4 pump with high flow output for serving four or more outlets. The Jabsco multi-diaphragm design self primes to 2.4m vertical lift and can run dry without damage. Supplied with inline Quick Connect strainer (40 Mesh).

The pressure pump can be used for the following applications: Washdown, with a Y-valve to serve a dual purpose Livewell circulation pump, Freshwater Delivery Pumps (galley, shower, washing machine), Shower Drain, Baitwell, General Purpose and Auxiliary Bilge.

Approvals - CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 Marine (Ignition Protected)
Cut Out Pressure Description - 25 PSI / 1.7 Bar
Flow Rate Description - 15.1 LPM (4 US GPM)
Fuse - 15A (Not Included)
Height Description - 97mm (3.8")
Length - Pump: 239mm (9.4"), Cable: 305mm (12")
Material - Upper Housing*: Fibre reinforced polypropylene, Lower Housing: Cast Aluminium, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*: EPDM, Switch diaphragm*: EPDM, Bypass Diaphragm*: EPDM, PH Seals*: EPDM, PH Fasteners: Stainless Steel, Baseplate: Plastic & rubber feet, Motor Casing: Cast Aluminium; Coated Steel. (*in contact with water)
Series - Par-Max HD4
Temperature Range - Ambient: 0°C ‐ 60°C (32°F ‐ 140°F), Fluid: 0°C ‐ 60°C (32°F ‐ 140°F)
Type - Fresh Water Pumps
Voltage Description - 12V DC
Width - 109mm (4.3")
Brand- Jabsco
Accumulator Recommended - Yes
Warranty - 3 Years
Dimensions - Distance between mounting hole centres: 50mm x 90mm (2" x 3.6")
Hose Size - 13mm / 1/2"
Maximum Pressure - Inlet: 30 PSI (2.1 Bar)
Model - Q401J-112S-3A
Replaces - Jabsco 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 & 82600‐0392, WP-014 & 509736. Closest Alternative for Jabsco 52600-0292 PAR-Max 7 Pump
Self Primes up to - 2.4 Metres (7.9 Feet)
Wire Size - 2.5mm2 (14 AWG)
Inlet Outlet - Fittings for 13mm (1/2") ID hose
Amps Description - Maximum: 8A (at 25 PSI / 1.7 Bar)
