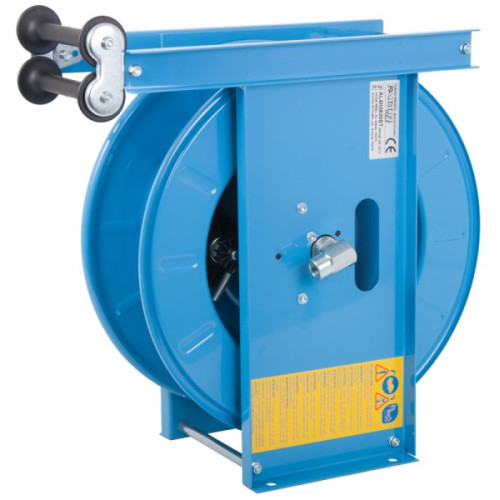

Faicom AL Series Retractable Hose Reel AL4H3820ST

- 20 metre capacity - 20mm od hose

- 400 Bar max pressure

- 150°C max temperature

- Hose not included

- Fixed hose feed

- Epoxy powder coated steel

- 3/8"BSPF inlet

- 3/8"BSPM outlet

The automatic hose reels of the range AL are suitable to distribute fluids at several pressures and temperatures. The hose reels rewind automatically the hose by a spring located in the drum. The hose can be stopped at the desired length. The hot-galvanized steel structure is moulded and coated with electrostatic polyester powder resistant to UV rays. The parts in contact with the fluid are specially treated to improve resistance to corrosion.

The hose-guide support can be mounted in two different positions according to the hose reel installation (see A-B).

The range is divided into different models depending on hose diameters and lengths. At request, models equipped with special hoses can be supplied. Optional: flexible hose for the connection to the system, revolving stand, 4-rollers hose guide, additional bracket for a quick fixing of the hose reel.
