Coelbo Onematic Automatic Pump Controller. Pressflow Tech Driver for a single-phase or three-phase pump at On-Off or pressure and flow-dependant mode.

Onematic is a compact driver for a single pump (single-phase or three-phase) with 2 options of operation: pressure dependent mode or on / off (pressure & flow dependent mode).

Onematic pump controllers start and stop the pump based on the detected pressure by its internal transducer and the flow detected by the flow sensor. It can also work in pressure dependent mode (start pressure and stop pressure) or on / off mode (start pressure between 1 - 5 bar).

Specifications:

Auto stop / start

Dry run protection with automatic re-set

Adjustable start / stop pressure

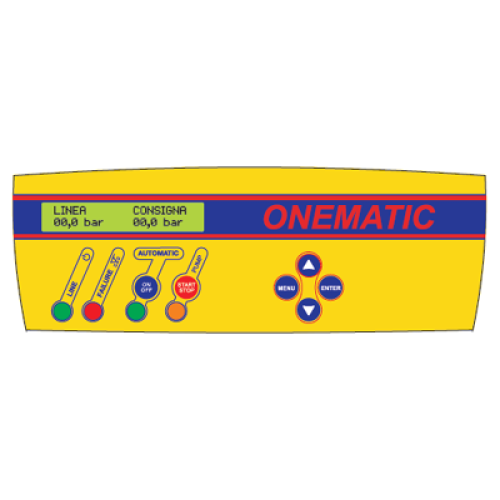

LCD screen

Warning LED lights

Push-buttons (start, stop, automatic)

No water hammer

Simple installation

Maximum liquid temperature: 40ºC

IP55 Protection

Voltage 230v

Current 10A

Inlet Outlet 1 1/4"

250 Lpm
